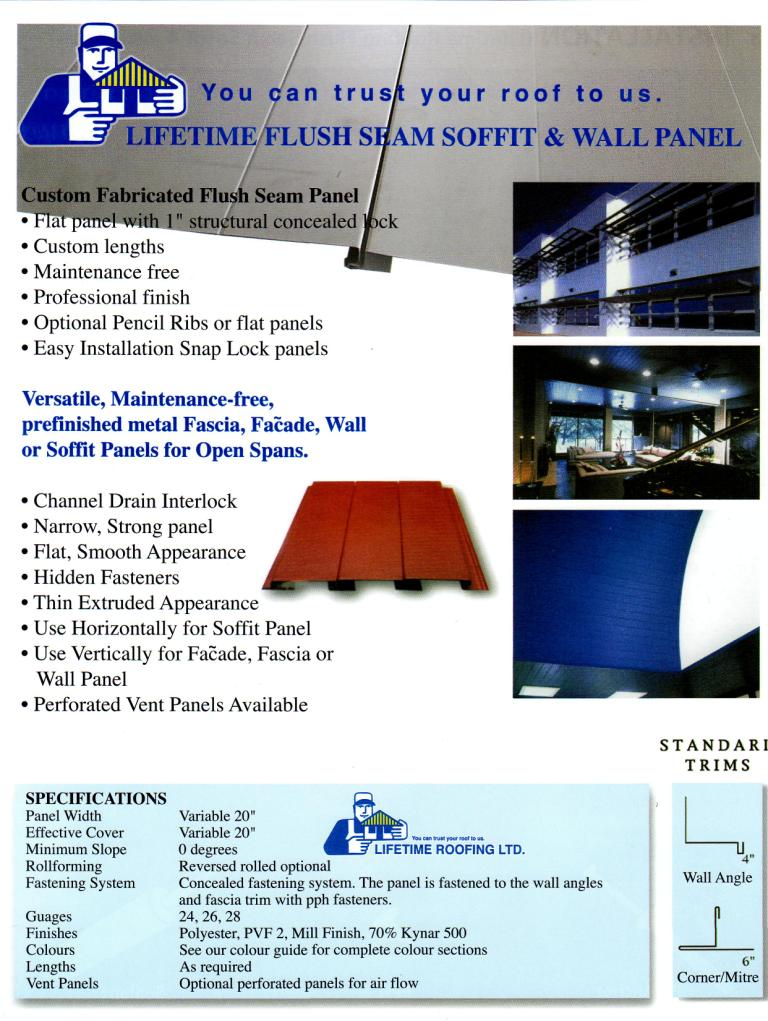

• Flat panel with 1″ structural concealed
• Custom lengths
• Maintenance free
• Professional finish
• Optional Pencil Ribs or flat panels
• Easy Installation Snap Lock panels

Versatile, Maintenance-free, prefinished metal Fascia, Facade, Wall or Soffit Panels for Open Spans.

• Channel Drain Interlock
• Narrow, Strong panel
• Flat, Smooth Appearance
• Hidden Fasteners
• Thin Extruded Appearance
• Use Horizontally for Soffit Panel
  • Use Vertically for Facade, Fascia or Wall Panel
  • Perforated Vent Panels Available

Specifications

• Panel Width - Variable 20″
• Effective Cover – Variable 20″
• Minimum Slope – 0 degrees
• Rollforming - Reversed rolled optional

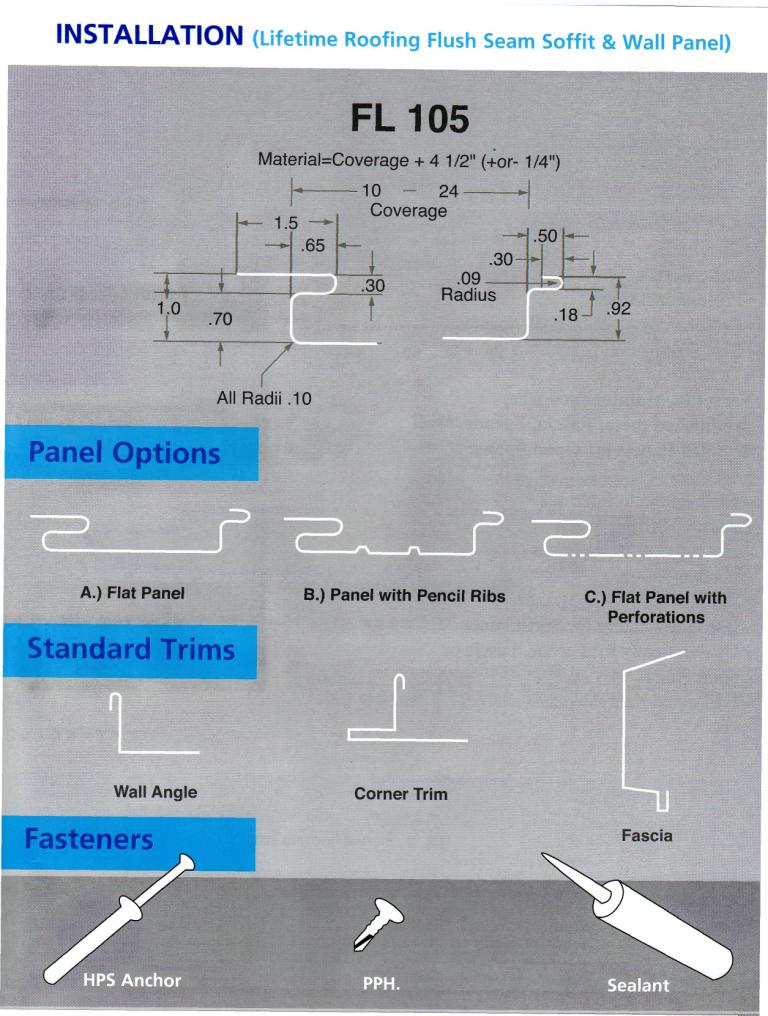

• Fastening System – Concealed fastening system. The panel is fastened to the wall angles and fascia trim with pph fasteners.
• Guages – 24, 26, 28
• Finishes - Polyester, PVF 2, Mill Finish, 70% Kynar 500
• Colours - See our colour guide for complete colour sections
• Lengths – As required
• Vent Panels – Optional perforated panels for air flow
