Waterproof Membrane


membrane

WATERPROOF MEMBRANE BASED ON BITUMEN WITH A GLASS FIBRE ENLAY OR POLYESTER FIBRE WITH OR WITHOUT A MINERAL GRIT.

Lifetime Waterproof Membrane is a waterproofing layer used in the protection of the roofs of buildings. The Bituminous membrane has outstanding properties of impermeability, adhesiveness and resistance to temperatures.

Lifetime Waterproof Membrane is therefore:

    Click here for full image

    Click here for full image

  • Flexible
  • Elastic
  • Perforation resistant
  • Non Rotting
  • Tear resistant
  • Dimensibility stable
  • Resistant to temperatures and aging
  • Guaranteed

EQUIPMENT

For the application of the membrane the following equipment is required:

  • a propane gas cylinder
  • a burner for flame application

APPLICATION

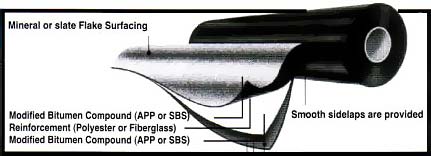

membrane-roll

The application of Lifetime membrane is very easy and fast. Roll down the membrane in the prescribed direction and align it to the roof edge or base sheet. The partially re-roll it taking care not to alter the alignment. Starting at the low point in the roof and while urolling the membrane apply heat by using a propane torch to the outer surface of the roll until the modified bitumen reaches the application temperature (approximately 150° c or 310° F) causing the compound to soften.

Do not overheat the membrane to a point where smoke starts to come out. Move the flame from side to side while unrolling the membrane by slightly pressing it to the underlying surface. Avoid shifting the roll while unrolling follow the edge of the roof or the lap line. All overlaps should have at least 1/4″ bleeding or flow-out at the seams. In order to have a smooth and even seal at the joint, apply the flame to the bleed out and the trowel simultaneously and spread the melted compound evenly to seal the joint. To ensure sound lap sealing additional pressure to these areas is recommended. This can be achieved by walking over the seams. Avoid too much heating at this point.

To begin the second row, position a roll over the upper edge of the starter roll and allow a 4″ side lap over the underlying membrane roll, proceed torching the full roll as described above working your way to the highest point on the roof always maintaining a 4″ side lap and 6″ end lap.

If you are using a Slate/Granule surfaced product remove the release paper on the lap line before torching the overlapping membrane. Do not torch the release paper. Take special care to prevent the mopping asphalt from running on to the adjacent granular surface marring the exposed surface of the adjacent roll, Caution should be taken not to apply Lifetime membranes in severe weather conditions. Under no circumstances unroll Lifetime membranes when temperatures are below-1° C or F.

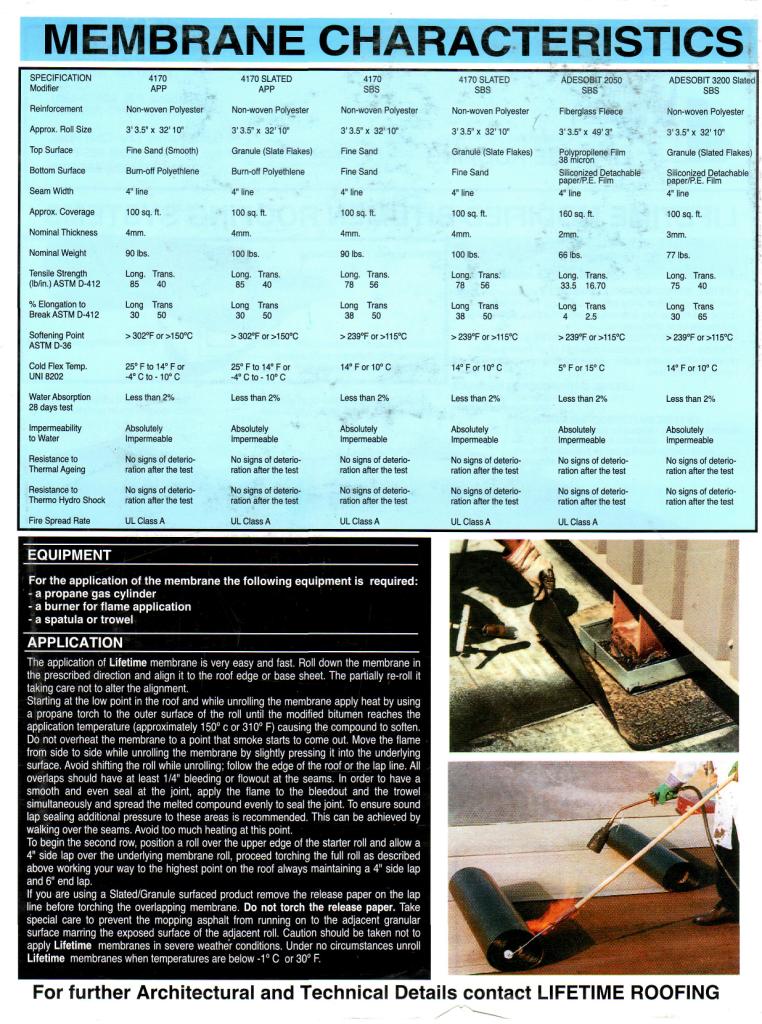

SPECIFICATION Modifier

4170 APP

4170 SLATED APP

4170 SBS

4170 SLATED SBS

ADESOBIT 2050 SBS

ADESOBIT 3200 SLATED SBS

Reinforcement

Non-woven Polyester

Non-woven Polyester

Non-woven Polyester

Non-woven Polyester

Fibreglass Fleece

Non-woven Polyester

Approx. Roll Size

3’3.5″ x 32’10″

3′ 3.5″ x 32′ 10″

313.5″ x 32’10″

3’3.5″ x 32’10″

3′ 3.5″ x 49′ 3″

3’3.5″ x 32’10″

Top Surface Bottom Surface Seam Width

Fine Sand (Smooth) Burn-off Polyethiene 4″ line

Granule (Slate Flakes) Burn-off Polyethiene 4″ line

Fine Sand Fine Sand 4″ line

Granule (Slate Flakes) Fine Sand 4″ line

Polypropilene Film 38 micron Siliconized Detachable paper/P.E. Film 4″ line

Granule (Slate Flakes)
Siliconized Detachable paper/P.E. Film 4″ line

Approx. Coverage

100 sq.ft.

100 sq.ft.

100 sq.ft.

100 sq.ft.

160 sq.ft.

100 sq. ft.

Nominal Thickness

4mm.

4mm.

4mm.

4mm.

2mm.

3mm.

Nominal Weight

90 lbs

100 lbs

90 lbs

100 lbs

66 lbs

77 lbs

Tensile Strength (Ib/in.) ASTM D-412

Long. Trans. 85      40

Long. Trans. 85      40

Long. Trans. 78      56

Long. Trans. 78      56

Long. Trans. 33.5      16.70

Long. Trans. 75      40

% Elongation to Break ASTM D-412

Long. Trans. 30      50

Long. Trans. 30      50

Long. Trans. 38      50

Long. Trans. 38      50

Long. Trans. 4      2.5

Long. Trans. 30      65

Softening Point ASTM D-36

>302°For>150°C

>302°For>150°C

>239°For>115°C

>239°For>115°C

>239°For>115°C

>239°For>115°C

Cold Flex Temp. UNI 8202

25° Fto 14°For -4°Cto-10°C

25° F to 14″ For -4°Cto-10°C

14° F to 10° C

14° F to 10° C

5° For-15° C

14° For-10° C

Water Absorption 28 days test

Less than 2%

Less than 2%

Less than 2%

Less than 2%

Less than 2%

Less than 2%

Impermeability to Water

Absolutely Impermeable

Absolutely Impermeable

Absolutely Impermeable

Absolutely Impermeable

Absolutely Impermeable

Absolutely Impermeable

Resistance to Thermal Ageing

No signs of deterio­ration after the test

No signs of deterio­ration after the test

No signs of deterio­ration after the test

No signs of deterio­ration after the test

No signs of deterio­ration after the test

No signs of deterio­ration after the test

Resistance to Thermo Hydro Shock

No signs of deterio­ration after the test

No signs of deterio­ration after the test

No signs of deterio­ration after the test

No signs of deterio­ration after the test

No signs of deterio­ration after the test

No signs of deterio­ration after the test
